FA157減速機重量：FA157減速機重量949公斤，F(xiàn)A157減速機與電機重量分別如下

FA157減速機與11KW電機重量1064公斤，F(xiàn)A157減速機與15KW電機重量1084公斤，F(xiàn)A157減速機與18.5KW電機重量1121公斤，F(xiàn)A157減速機與22KW電機重量1134公斤，F(xiàn)A157減速機與30KW電機重量1202公斤，F(xiàn)A157減速機與37KW電機重量1249公斤，F(xiàn)A157減速機與45KW電機重量1284公斤，F(xiàn)A157減速機與55KW電機重量1369公斤，F(xiàn)A157減速機與75KW電機重量1509公斤，F(xiàn)A157減速機與90KW電機重量1619公斤，F(xiàn)A157減速機與110KW電機重量1869公斤，F(xiàn)A157減速機與132KW電機重量999公斤。齒輪減速機

FA157減速機加油量：可加齒輪油

FA157減速機M3方式安裝加62L，F(xiàn)A157減速機M2方式安裝加103L，F(xiàn)A157減速機M1方式安裝加68L，F(xiàn)A157減速機M4方式安裝加104L，F(xiàn)A157減速機M5方式安裝加85L，F(xiàn)A157減速機M6方式安裝加79.5L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整方式安裝時，您必須根據改變后的方式安裝相應調整加注潤滑劑。上述中列出了方式安裝M1-M6的減速機相應的標準參考潤滑油注入量值。

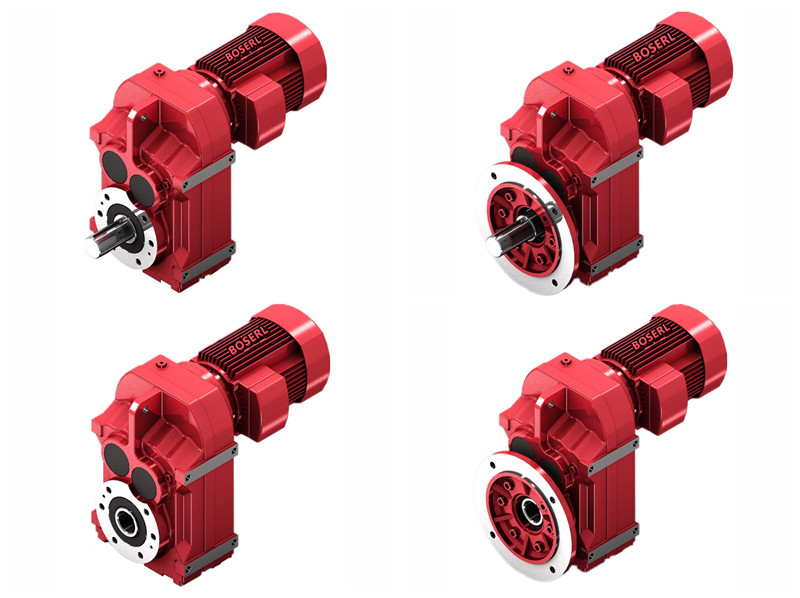

FA157減速機實物圖：圖一為FA157臥式孔輸出平行軸減速機，圖二F157底腳方式安裝軸輸出平行軸減速機，圖三為FF157立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FAF157立式法蘭孔輸出平行軸斜齒輪減速機。

FA157減速機型號表示方法：

FA157減速機型號結構FA157-B90KW-4P-減速比-方式安裝-接線盒位置。

FA157減速機性能參數表結構說明：HF手動釋放裝置與自鎖功能，HR手動釋放裝置，F(xiàn)A157，F(xiàn)157，F(xiàn)F157，F(xiàn)AF157減速機機座號，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FA157減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位，其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。分體減速機電機

FA157減速機參數：

FA157減速機減速比1:267，1:217，1:178，1:162，1:141，1:125，1:108，1:96，1:85，1:78，1:68，1:60，1:52，1:46，1:40，1:32，1:27，1:53，1:43，1:35，1:28，1:25，1:22，1:19，1:16，1:13，1:11

FA157減速機輸出轉數117轉，5.2轉，6.4轉，7.9轉，8.6轉，9.9轉，11轉，13轉，15轉，16轉，18轉，21轉，23轉，27轉，30轉，35轉，43轉，51轉，26轉，32轉，39轉，49轉，55轉，63轉，71轉，83轉，100轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FA157減速機電機可與直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FA157與11KW，F(xiàn)A157與15KW，F(xiàn)A157與18.5KW，F(xiàn)A157與22KW，F(xiàn)A157與30KW，F(xiàn)A157與37KW，F(xiàn)A157與45KW，F(xiàn)A157與55KW，F(xiàn)A157與75KW，F(xiàn)A157與90KW，F(xiàn)A157與110KW，F(xiàn)A157與132KW。

FA157減速機輸出扭矩18000N.m，17000N.m，16000N.m，15000N.m，11000N.m，10000N.m，8000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

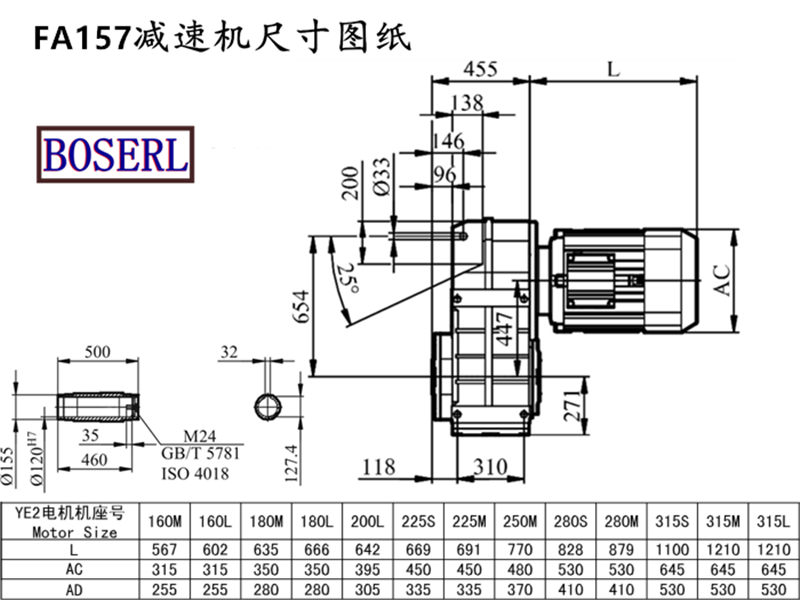

FA157減速機安裝尺寸：高1006*寬660*長662

FA157減速機型號：

FA157AQA80,FA157AQA100,FA157AQA115,FA157AQA140,FA157AQA160,FA157AQA190,FA157AQH80,FA157AQH100,FA157AQH115,FA157AQH140,FA157AQH160,FA157AQH190,JRTFA157-Y110KW,JRTFA157-Y11KW,JRTFA157-Y132KW,JRTFA157-Y15KW,JRTFA157-Y160M4,JRTFA157-Y18.5KW,JRTFA157-Y180M4,JRTFA157-Y200M4,JRTFA157-Y225M4,JRTFA157-Y22KW,JRTFA157-Y250M4,JRTFA157-Y280M4,JRTFA157-Y30KW,JRTFA157-Y315M4,JRTFA157-Y37KW,JRTFA157-Y45KW,JRTFA157-Y55KW,JRTFA157-Y75KW,JRTFA157-Y90KW,JRTFA157-YEJ160M4,JRTFA157-YEJ180M4,JRTFA157-YEJ200M4,JRTFA157-YEJ225M4,JRTFA157-YEJ250M4,JRTFA157-YEJ280M4,JRTFA157-YEJ315M4,JRTFA157-YS160M4,JRTFA157-YS180M4,JRTFA157-YS200M4,JRTFA157-YS225M4,JRTFA157-YS250M4,JRTFA157-YS280M4,JRTFA157-YS315M4,JRTFA157-YVP160M4,JRTFA157-YVP180M4,JRTFA157-YVP200M4,JRTFA157-YVP225M4,JRTFA157-YVP250M4,JRTFA157-YVP280M4,JRTFA157-YVP315M4,JRTFA157-YVPEJ160M4,JRTFA157-YVPEJ180M4,JRTFA157-YVPEJ200M4,JRTFA157-YVPEJ225M4,JRTFA157-YVPEJ250M4,JRTFA157-YVPEJ280M4,JRTFA157-YVPEJ315M4,EWFA157-Y110KW,EWFA157-Y11KW,EWFA157-Y132KW,EWFA157-Y15KW,EWFA157-Y160M4,EWFA157-Y18.5KW,EWFA157-Y180M4,EWFA157-Y200M4,EWFA157-Y225M4,EWFA157-Y22KW,EWFA157-Y250M4,EWFA157-Y280M4,EWFA157-Y30KW,EWFA157-Y315M4,EWFA157-Y37KW,EWFA157-Y45KW,EWFA157-Y55KW,EWFA157-Y75KW,EWFA157-Y90KW,EWFA157-YEJ160M4,EWFA157-YEJ180M4,EWFA157-YEJ200M4,EWFA157-YEJ225M4,EWFA157-YEJ250M4,EWFA157-YEJ280M4,EWFA157-YEJ315M4,EWFA157-YS160M4,EWFA157-YS180M4,EWFA157-YS200M4,EWFA157-YS225M4,EWFA157-YS250M4,EWFA157-YS280M4,EWFA157-YS315M4,EWFA157-YVP160M4,EWFA157-YVP180M4,EWFA157-YVP200M4,EWFA157-YVP225M4,EWFA157-YVP250M4,EWFA157-YVP280M4,EWFA157-YVP315M4,EWFA157-YVPEJ160M4,EWFA157-YVPEJ180M4,EWFA157-YVPEJ200M4,EWFA157-YVPEJ225M4,EWFA157-YVPEJ250M4,EWFA157-YVPEJ280M4,EWFA157-YVPEJ315M4,SLFA157-Y110KW,SLFA157-Y11KW,SLFA157-Y132KW,SLFA157-Y15KW,SLFA157-Y160M4,SLFA157-Y18.5KW,SLFA157-Y180M4,SLFA157-Y200M4,SLFA157-Y225M4,SLFA157-Y22KW,SLFA157-Y250M4,SLFA157-Y280M4,SLFA157-Y30KW,SLFA157-Y315M4,SLFA157-Y37KW,SLFA157-Y45KW,SLFA157-Y55KW,SLFA157-Y75KW,SLFA157-Y90KW,SLFA157-YEJ160M4,SLFA157-YEJ180M4,SLFA157-YEJ200M4,SLFA157-YEJ225M4,SLFA157-YEJ250M4,SLFA157-YEJ280M4,SLFA157-YEJ315M4,SLFA157-YS160M4,SLFA157-YS180M4,SLFA157-YS200M4,SLFA157-YS225M4,SLFA157-YS250M4,SLFA157-YS280M4,SLFA157-YS315M4,SLFA157-YVP160M4,SLFA157-YVP180M4,SLFA157-YVP200M4,SLFA157-YVP225M4,SLFA157-YVP250M4,SLFA157-YVP280M4,SLFA157-YVP315M4,SLFA157-YVPEJ160M4,SLFA157-YVPEJ180M4,SLFA157-YVPEJ200M4,SLFA157-YVPEJ225M4,SLFA157-YVPEJ250M4,SLFA157-YVPEJ280M4,SLFA157-YVPEJ315M4,DSZFA157-Y110KW,DSZFA157-Y11KW,DSZFA157-Y132KW,DSZFA157-Y15KW,DSZFA157-Y160M4,DSZFA157-Y18.5KW,DSZFA157-Y180M4,DSZFA157-Y200M4,DSZFA157-Y225M4,DSZFA157-Y22KW,DSZFA157-Y250M4,DSZFA157-Y280M4,DSZFA157-Y30KW,DSZFA157-Y315M4,DSZFA157-Y37KW,DSZFA157-Y45KW,DSZFA157-Y55KW,DSZFA157-Y75KW,DSZFA157-Y90KW,DSZFA157-YEJ160M4,DSZFA157-YEJ180M4,DSZFA157-YEJ200M4,DSZFA157-YEJ225M4,DSZFA157-YEJ250M4,DSZFA157-YEJ280M4,DSZFA157-YEJ315M4,DSZFA157-YS160M4,DSZFA157-YS180M4,DSZFA157-YS200M4,DSZFA157-YS225M4,DSZFA157-YS250M4,DSZFA157-YS280M4,DSZFA157-YS315M4,DSZFA157-YVP160M4,DSZFA157-YVP180M4,DSZFA157-YVP200M4,DSZFA157-YVP225M4,DSZFA157-YVP250M4,DSZFA157-YVP280M4,DSZFA157-YVP315M4,DSZFA157-YVPEJ160M4,DSZFA157-YVPEJ180M4,DSZFA157-YVPEJ200M4,DSZFA157-YVPEJ225M4,DSZFA157-YVPEJ250M4,DSZFA157-YVPEJ280M4,DSZFA157-YVPEJ315M4,BFA157-Y110KW,BFA157-Y11KW,BFA157-Y132KW,BFA157-Y15KW,BFA157-Y160M4,BFA157-Y18.5KW,BFA157-Y180M4,BFA157-Y200M4,BFA157-Y225M4,BFA157-Y22KW,BFA157-Y250M4,BFA157-Y280M4,BFA157-Y30KW,BFA157-Y315M4,BFA157-Y37KW,BFA157-Y45KW,BFA157-Y55KW,BFA157-Y75KW,BFA157-Y90KW,BFA157-YEJ160M4,BFA157-YEJ180M4,BFA157-YEJ200M4,BFA157-YEJ225M4,BFA157-YEJ250M4,BFA157-YEJ280M4,BFA157-YEJ315M4,BFA157-YS160M4,BFA157-YS180M4,BFA157-YS200M4,BFA157-YS225M4,BFA157-YS250M4,BFA157-YS280M4,BFA157-YS315M4,BFA157-YVP160M4,BFA157-YVP180M4,BFA157-YVP200M4,BFA157-YVP225M4,BFA157-YVP250M4,BFA157-YVP280M4,BFA157-YVP315M4,BFA157-YVPEJ160M4,BFA157-YVPEJ180M4,BFA157-YVPEJ200M4,BFA157-YVPEJ225M4,BFA157-YVPEJ250M4,BFA157-YVPEJ280M4,BFA157-YVPEJ315M4,GFA157-Y110KW,GFA157-Y11KW,GFA157-Y132KW,GFA157-Y15KW,GFA157-Y160M4,GFA157-Y18.5KW,GFA157-Y180M4,GFA157-Y200M4,GFA157-Y225M4,GFA157-Y22KW,GFA157-Y250M4,GFA157-Y280M4,GFA157-Y30KW,GFA157-Y315M4,GFA157-Y37KW,GFA157-Y45KW,GFA157-Y55KW,GFA157-Y75KW,GFA157-Y90KW,GFA157-YEJ160M4,GFA157-YEJ180M4,GFA157-YEJ200M4,GFA157-YEJ225M4,GFA157-YEJ250M4,GFA157-YEJ280M4,GFA157-YEJ315M4,GFA157-YS160M4,GFA157-YS180M4,GFA157-YS200M4,GFA157-YS225M4,GFA157-YS250M4,GFA157-YS280M4,GFA157-YS315M4,GFA157-YVP160M4,GFA157-YVP180M4,GFA157-YVP200M4,GFA157-YVP225M4,GFA157-YVP250M4,GFA157-YVP280M4,GFA157-YVP315M4,GFA157-YVPEJ160M4,GFA157-YVPEJ180M4,GFA157-YVPEJ200M4,GFA157-YVPEJ225M4,GFA157-YVPEJ250M4,GFA157-YVPEJ280M4,GFA157-YVPEJ315M4,FCA157-Y110KW,FCA157-Y11KW,FCA157-Y132KW,FCA157-Y15KW,FCA157-Y160M4,FCA157-Y18.5KW,FCA157-Y180M4,FCA157-Y200M4,FCA157-Y225M4,FCA157-Y22KW,FCA157-Y250M4,FCA157-Y280M4,FCA157-Y30KW,FCA157-Y315M4,FCA157-Y37KW,FCA157-Y45KW,FCA157-Y55KW,FCA157-Y75KW,FCA157-Y90KW,FCA157-YEJ160M4,FCA157-YEJ180M4,FCA157-YEJ200M4,FCA157-YEJ225M4,FCA157-YEJ250M4,FCA157-YEJ280M4,FCA157-YEJ315M4,FCA157-YS160M4,FCA157-YS180M4,FCA157-YS200M4,FCA157-YS225M4,FCA157-YS250M4,FCA157-YS280M4,FCA157-YS315M4,FCA157-YVP160M4,FCA157-YVP180M4,FCA157-YVP200M4,FCA157-YVP225M4,FCA157-YVP250M4,FCA157-YVP280M4,FCA157-YVP315M4,FCA157-YVPEJ160M4,FCA157-YVPEJ180M4,FCA157-YVPEJ200M4,FCA157-YVPEJ225M4,FCA157-YVPEJ250M4,FCA157-YVPEJ280M4,FCA157-YVPEJ315M4,MTPA157-Y110KW,MTPA157-Y11KW,MTPA157-Y132KW,MTPA157-Y15KW,MTPA157-Y160M4,MTPA157-Y18.5KW,MTPA157-Y180M4,MTPA157-Y200M4,MTPA157-Y225M4,MTPA157-Y22KW,MTPA157-Y250M4,MTPA157-Y280M4,MTPA157-Y30KW,MTPA157-Y315M4,MTPA157-Y37KW,MTPA157-Y45KW,MTPA157-Y55KW,MTPA157-Y75KW,MTPA157-Y90KW,MTPA157-YEJ160M4,MTPA157-YEJ180M4,MTPA157-YEJ200M4,MTPA157-YEJ225M4,MTPA157-YEJ250M4,MTPA157-YEJ280M4,MTPA157-YEJ315M4,MTPA157-YS160M4,MTPA157-YS180M4,MTPA157-YS200M4,MTPA157-YS225M4,MTPA157-YS250M4,MTPA157-YS280M4,MTPA157-YS315M4,MTPA157-YVP160M4,MTPA157-YVP180M4,MTPA157-YVP200M4,MTPA157-YVP225M4,MTPA157-YVP250M4,MTPA157-YVP280M4,MTPA157-YVP315M4,MTPA157-YVPEJ160M4,MTPA157-YVPEJ180M4,MTPA157-YVPEJ200M4,MTPA157-YVPEJ225M4,MTPA157-YVPEJ250M4,MTPA157-YVPEJ280M4,MTPA157-YVPEJ315M4,WXFA157-WSS110KW,WXFA157-WSS11KW,WXFA157-WSS132KW,WXFA157-WSS15KW,WXFA157-WSS160M4,WXFA157-WSS18.5KW,WXFA157-WSS180M4,WXFA157-WSS200M4,WXFA157-WSS225M4,WXFA157-WSS22KW,WXFA157-WSS250M4,WXFA157-WSS280M4,WXFA157-WSS30KW,WXFA157-WSS315M4,WXFA157-WSS37KW,WXFA157-WSS45KW,WXFA157-WSS55KW,WXFA157-WSS75KW,WXFA157-WSS90KW,WXFA157-WSSB160M4,WXFA157-WSSB180M4,WXFA157-WSSB200M4,WXFA157-WSSB225M4,WXFA157-WSSB250M4,WXFA157-WSSB280M4,WXFA157-WSSB315M4,WXFA157-WSSVP160M4,WXFA157-WSSVP180M4,WXFA157-WSSVP200M4,WXFA157-WSSVP225M4,WXFA157-WSSVP250M4,WXFA157-WSSVP280M4,WXFA157-WSSVP315M4,WXFA157-WSSVPB160M4,WXFA157-WSSVPB180M4,WXFA157-WSSVPB200M4,WXFA157-WSSVPB225M4,WXFA157-WSSVPB250M4,WXFA157-WSSVPB280M4,WXFA157-WSSVPB315M4。

FA157減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.goto53.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F157減速機
