SF37減速機重量：SF37減速機重量9公斤，SF37減速機帶電機重量分別如下

SF37減速機帶0.12KW電機重量14.5公斤，SF37減速機帶0.18KW電機重量15公斤，SF37減速機帶0.25KW電機重量19公斤，SF37減速機帶0.37KW電機重量19.5公斤，SF37減速機帶0.55KW電機重量24公斤，SF37減速機帶0.75KW電機重量25公斤，SF37減速機帶1.1KW電機重量29公斤。

SF37減速機加油量：可加合成油

SF37減速機M2方式安裝加0.4升，SF37減速機M1方式安裝加0.25升，SF37減速機M3方式安裝加0.5升，SF37減速機M4方式安裝加0.55升，SF37減速機M5方式安裝加0.4升，SF37減速機M6方式安裝加0.4升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

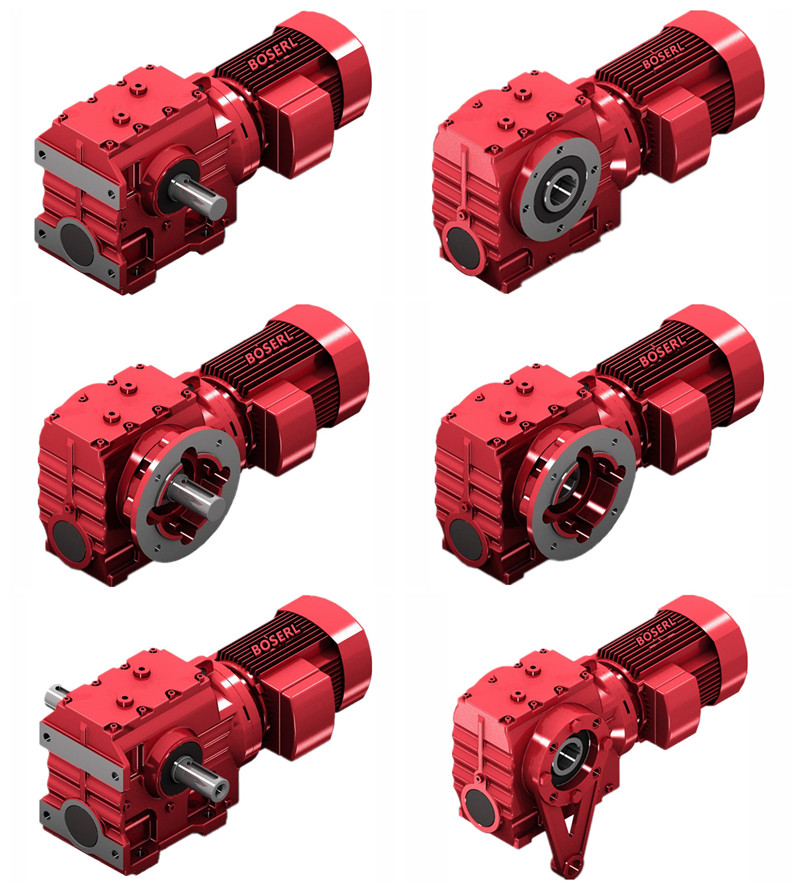

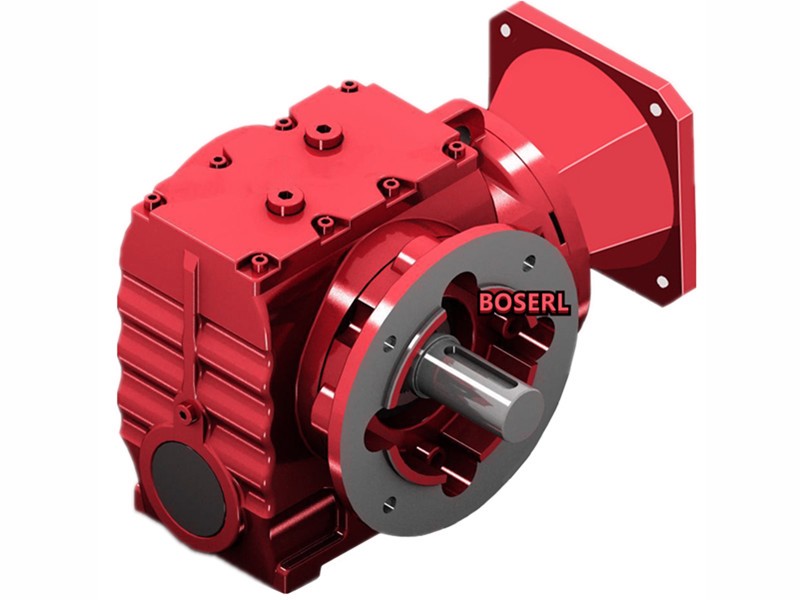

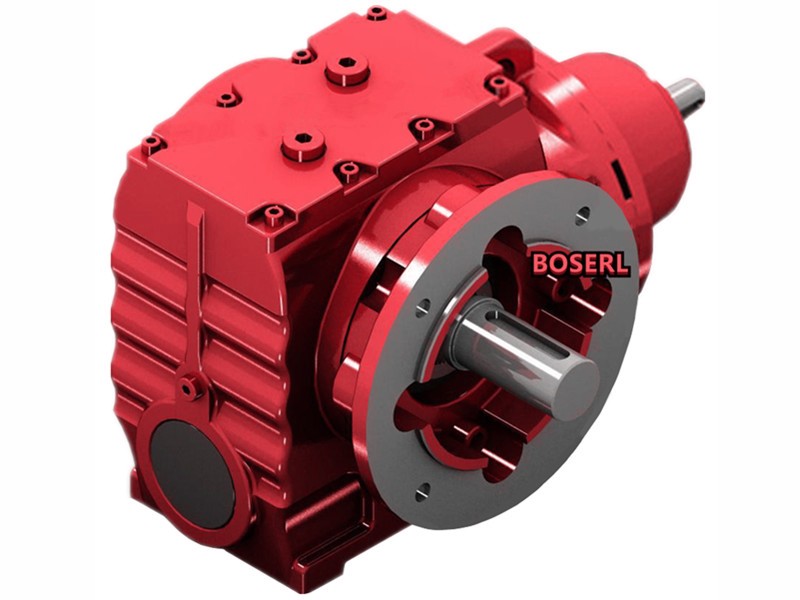

SF37減速機實物圖：圖一為SF37具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖二S37帶自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SA37臥式中孔軸斜齒輪蝸輪蝸桿減速電機，圖四為SAF37立式通孔斜齒輪減速機。

SF37減速機型號表示方法：

SF37減速機型號結構SF37-B0.75KW-4P-減速比-安裝方式-接線盒位置。

SF37減速機性能參數表結構說明：T扭力臂，E編碼器，K代表服務系數，F(xiàn)rame size代表基座規格，HF手動釋放裝置帶自鎖功能，TF電機熱保護裝置，SF37、S37、SA37、SAF37減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。

SF37減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

SF37減速機參數：

SF37減速機輸出轉數8.9轉減速機，9.7轉，11轉，13轉，14轉，16轉，17轉，20轉，22轉，25轉，26轉，27轉，32轉，37轉，40轉，46轉，49轉，55轉，62轉，70轉，73轉，77轉，90轉，105轉，112轉，128轉，137轉，155轉，175轉，206轉，221轉，260轉，288轉，353轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SF37減速機電機可帶三相、直流、變頻、剎車、防爆、伺服、交流、單相電機SF37帶0.12KW，SF37帶0.18KW，SF37帶0.25KW，SF37帶0.37KW，SF37帶0.55KW，SF37帶0.75KW，SF37帶1.1KW。

SF37減速機輸出扭矩92N.m，91N.m，88N.m，87N.m，86N.m，85N.m，84N.m，82N.m，81N.m，80N.m，79N.m，78N.m，76N.m，75N.m，74N.m，73N.m，52N.m，71N.m，50N.m，49N.m，48N.m，47N.m，46N.m，45N.m，43N.m，35N.m，34N.m，33N.m，32N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

SF37減速機減速比157.43比，144.40比，122.94比，106比，98.80比，86.36比，80.96比，71.44比，63.33比，55.93比，53.83比，51.30比，43.68比，37.66比，35.10比，30.68比，28.76比，25.38比，22.50比，19.89比，19.13比，18.24比，15.53比，13.39比，12.48比，10.91比，10.23比，9.02比，8.00比，6.80比，6.33比，5.38比，4.86比，3.97比。

SF37減速機外形尺寸：輸出軸直徑Φ20（可定做）+鍵2.5，高143*寬172（帶輸出軸）*長143

SF37減速機型號：SF37AQA80,SF37AQA100,SF37AQA115,SF37AQA140,SF37AQA160,SF37AQA190,SF37AQH80,SF37AQH100,SF37AQH115,SF37AQH140,SF37AQH160,SF37AQH190,JRTSF37-Y0.12KW,JRTSF37-Y0.18KW,JRTSF37-Y0.25KW,JRTSF37-Y0.F37KW,JRTSF37-Y0.55KW,JRTSF37-Y0.75KW,JRTSF37-Y1.1KW,JRTSF37-Y1.5KW,JRTSF37-Y63M4,JRTSF37-Y71M4,JRTSF37-Y80M4,JRTSF37-Y90M4,JRTSF37-YEJ63M4,JRTSF37-YEJ71M4,JRTSF37-YEJ80M4,JRTSF37-YEJ90M4,JRTSF37-YS63M4,JRTSF37-YS71M4,JRTSF37-YS80M4,JRTSF37-YS90M4,JRTSF37-YVP63M4,JRTSF37-YVP71M4,JRTSF37-YVP80M4,JRTSF37-YVP90M4,JRTSF37-YVPEJ63M4,JRTSF37-YVPEJ71M4,JRTSF37-YVPEJ80M4,JRTSF37-YVPEJ90M4,EWSF37-Y0.12KW,EWSF37-Y0.18KW,EWSF37-Y0.25KW,EWSF37-Y0.F37KW,EWSF37-Y0.55KW,EWSF37-Y0.75KW,EWSF37-Y1.1KW,EWSF37-Y1.5KW,EWSF37-Y63M4,EWSF37-Y71M4,EWSF37-Y80M4,EWSF37-Y90M4,EWSF37-YEJ63M4,EWSF37-YEJ71M4,EWSF37-YEJ80M4,EWSF37-YEJ90M4,EWSF37-YS63M4,EWSF37-YS71M4,EWSF37-YS80M4,EWSF37-YS90M4,EWSF37-YVP63M4,EWSF37-YVP71M4,EWSF37-YVP80M4,EWSF37-YVP90M4,EWSF37-YVPEJ63M4,EWSF37-YVPEJ71M4,EWSF37-YVPEJ80M4,EWSF37-YVPEJ90M4,SLSF37-Y0.12KW,SLSF37-Y0.18KW,SLSF37-Y0.25KW,SLSF37-Y0.F37KW,SLSF37-Y0.55KW,SLSF37-Y0.75KW,SLSF37-Y1.1KW,SLSF37-Y1.5KW,SLSF37-Y63M4,SLSF37-Y71M4,SLSF37-Y80M4,SLSF37-Y90M4,SLSF37-YEJ63M4,SLSF37-YEJ71M4,SLSF37-YEJ80M4,SLSF37-YEJ90M4,SLSF37-YS63M4,SLSF37-YS71M4,SLSF37-YS80M4,SLSF37-YS90M4,SLSF37-YVP63M4,SLSF37-YVP71M4,SLSF37-YVP80M4,SLSF37-YVP90M4,SLSF37-YVPEJ63M4,SLSF37-YVPEJ71M4,SLSF37-YVPEJ80M4,SLSF37-YVPEJ90M4,DSZSF37-Y0.12KW,DSZSF37-Y0.18KW,DSZSF37-Y0.25KW,DSZSF37-Y0.F37KW,DSZSF37-Y0.55KW,DSZSF37-Y0.75KW,DSZSF37-Y1.1KW,DSZSF37-Y1.5KW,DSZSF37-Y63M4,DSZSF37-Y71M4,DSZSF37-Y80M4,DSZSF37-Y90M4,DSZSF37-YEJ63M4,DSZSF37-YEJ71M4,DSZSF37-YEJ80M4,DSZSF37-YEJ90M4,DSZSF37-YS63M4,DSZSF37-YS71M4,DSZSF37-YS80M4,DSZSF37-YS90M4,DSZSF37-YVP63M4,DSZSF37-YVP71M4,DSZSF37-YVP80M4,DSZSF37-YVP90M4,DSZSF37-YVPEJ63M4,DSZSF37-YVPEJ71M4,DSZSF37-YVPEJ80M4,DSZSF37-YVPEJ90M4,BSF37-Y0.12KW,BSF37-Y0.18KW,BSF37-Y0.25KW,BSF37-Y0.F37KW,BSF37-Y0.55KW,BSF37-Y0.75KW,BSF37-Y1.1KW,BSF37-Y1.5KW,BSF37-Y63M4,BSF37-Y71M4,BSF37-Y80M4,BSF37-Y90M4,BSF37-YEJ63M4,BSF37-YEJ71M4,BSF37-YEJ80M4,BSF37-YEJ90M4,BSF37-YS63M4,BSF37-YS71M4,BSF37-YS80M4,BSF37-YS90M4,BSF37-YVP63M4,BSF37-YVP71M4,BSF37-YVP80M4,BSF37-YVP90M4,BSF37-YVPEJ63M4,BSF37-YVPEJ71M4,BSF37-YVPEJ80M4,BSF37-YVPEJ90M4,GSF37-Y0.12KW,GSF37-Y0.18KW,GSF37-Y0.25KW,GSF37-Y0.F37KW,GSF37-Y0.55KW,GSF37-Y0.75KW,GSF37-Y1.1KW,GSF37-Y1.5KW,GSF37-Y63M4,GSF37-Y71M4,GSF37-Y80M4,GSF37-Y90M4,GSF37-YEJ63M4,GSF37-YEJ71M4,GSF37-YEJ80M4,GSF37-YEJ90M4,GSF37-YS63M4,GSF37-YS71M4,GSF37-YS80M4,GSF37-YS90M4,GSF37-YVP63M4,GSF37-YVP71M4,GSF37-YVP80M4,GSF37-YVP90M4,GSF37-YVPEJ63M4,GSF37-YVPEJ71M4,GSF37-YVPEJ80M4,GSF37-YVPEJ90M4,SCF37-Y0.12KW,SCF37-Y0.18KW,SCF37-Y0.25KW,SCF37-Y0.F37KW,SCF37-Y0.55KW,SCF37-Y0.75KW,SCF37-Y1.1KW,SCF37-Y1.5KW,SCF37-Y63M4,SCF37-Y71M4,SCF37-Y80M4,SCF37-Y90M4,SCF37-YEJ63M4,SCF37-YEJ71M4,SCF37-YEJ80M4,SCF37-YEJ90M4,SCF37-YS63M4,SCF37-YS71M4,SCF37-YS80M4,SCF37-YS90M4,SCF37-YVP63M4,SCF37-YVP71M4,SCF37-YVP80M4,SCF37-YVP90M4,SCF37-YVPEJ63M4,SCF37-YVPEJ71M4,SCF37-YVPEJ80M4,SCF37-YVPEJ90M4,MTNF37-Y0.12KW,MTNF37-Y0.18KW,MTNF37-Y0.25KW,MTNF37-Y0.F37KW,MTNF37-Y0.55KW,MTNF37-Y0.75KW,MTNF37-Y1.1KW,MTNF37-Y1.5KW,MTNF37-Y63M4,MTNF37-Y71M4,MTNF37-Y80M4,MTNF37-Y90M4,MTNF37-YEJ63M4,MTNF37-YEJ71M4,MTNF37-YEJ80M4,MTNF37-YEJ90M4,MTNF37-YS63M4,MTNF37-YS71M4,MTNF37-YS80M4,MTNF37-YS90M4,MTNF37-YVP63M4,MTNF37-YVP71M4,MTNF37-YVP80M4,MTNF37-YVP90M4,MTNF37-YVPEJ63M4,MTNF37-YVPEJ71M4,MTNF37-YVPEJ80M4,MTNF37-YVPEJ90M4,WXSF37-WSS0.12KW,WXSF37-WSS0.18KW,WXSF37-WSS0.25KW,WXSF37-WSS0.F37KW,WXSF37-WSS0.55KW,WXSF37-WSS0.75KW,WXSF37-WSS1.1KW,WXSF37-WSS1.5KW,WXSF37-WSS63M4,WXSF37-WSS71M4,WXSF37-WSS80M4,WXSF37-WSS90M4,WXSF37-WSSB63M4,WXSF37-WSSB71M4,WXSF37-WSSB80M4,WXSF37-WSSB90M4,WXSF37-WSSVP63M4,WXSF37-WSSVP71M4,WXSF37-WSSVP80M4,WXSF37-WSSVP90M4,WXSF37-WSSVPB63M4,WXSF37-WSSVPB71M4,WXSF37-WSSVPB80M4,WXSF37-WSSVPB90M4。伺服電機蝸輪蝸桿減速機
